Tools required

1x Screwdriver – Phillips Head #2 / PH2

Please take care with the connectors to not damage them. CAT12 FlexModules have 6x cellular antenna connections while CAT18 & CAT20 have 8x cellular antenna connections per FlexModule. So if you are upgrading from CAT12 to either CAT18 or CAT20, you will require additional antennas. The number of GPS antennas remains the same at one. FlexModules are fully interchangeable between the different types of FlexModules, e.g. ethernet, fibre, and cellular.

Step 1:  Power off the router. The router Must be disconnected from power before starting the upgrade.

Step 2: For cellular versions, disconnect all antennas including the GPS antennas.

Step 3: There are two screws on the front of the FlexModule; both need to be loosened. The screws are spring loaded and will be held in place so as to not fall out. The screws remain with the FlexModule.

Step 4: Remove the module by pulling it out directly. It should slide out with minimal force.

Step 5: Install the new module. Make sure it is correctly aligned and press the module firmly into place. The FlexModule should sit flush with surrounding FlexModules or slightly countersunk (1-2mm) of the router chassis.

Step 6: Tighten the screws until flush and tight with the collar.

Step 7: Reconnect the antennas.

Step 8: Reconnect the power.



FCC Requirements for Operation in the United States

Federal Communications Commission (FCC) Compliance Notice:



For FlexModule Plus



Federal Communication Commission Interference Statement



This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.



Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.



Radiation Exposure Statement



This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20

centimeters between the radiator and your body.



Industry Canada Statement



This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.



Le présent produit est conforme aux spécifications techniques applicables d’Innovation, Sciences et Développement économique Canada.



This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:



(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.



Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes:

(1)  l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en



Radiation Exposure Statement



This device complies with the ISED radiation exposure limit set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator & your body.



Cet équipement est conforme avec l’exposition aux radiations ISED définies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimum de 20 cm entre le radiateur et votre corps.

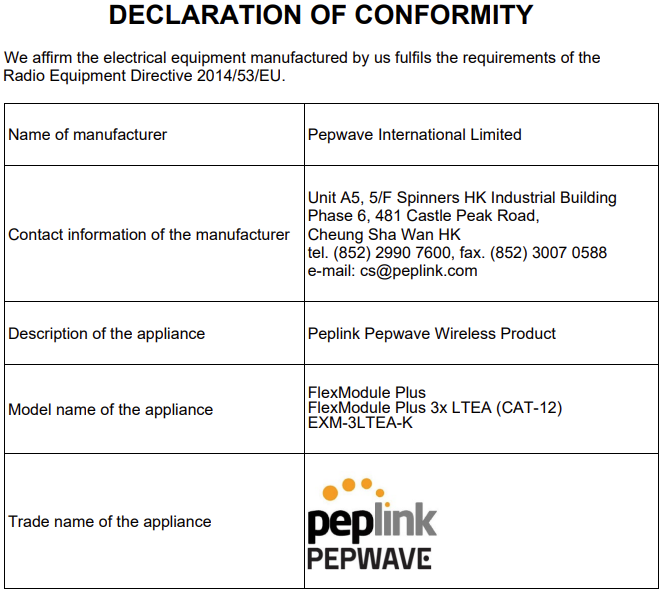

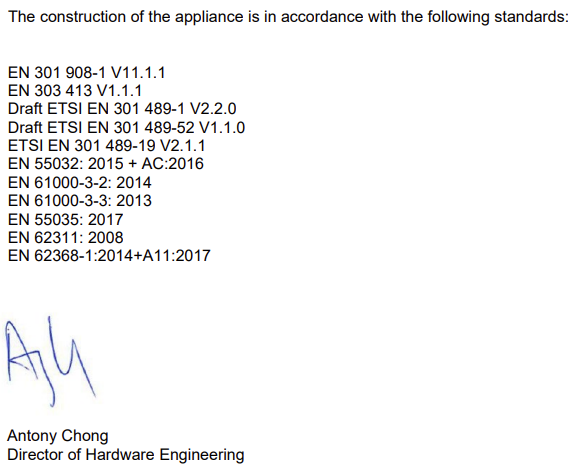

CE Statement for Pepwave Routers ( FlexModule Plus for EM7565 )

This equipment complies with CE radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.

contact as: https://www.peplink.com/

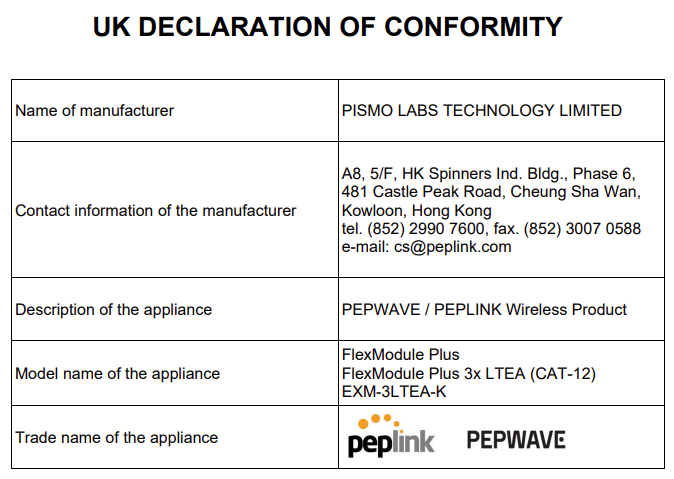

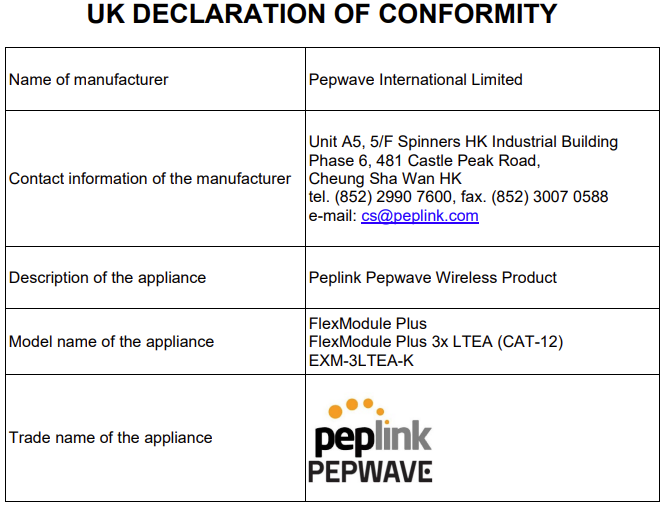

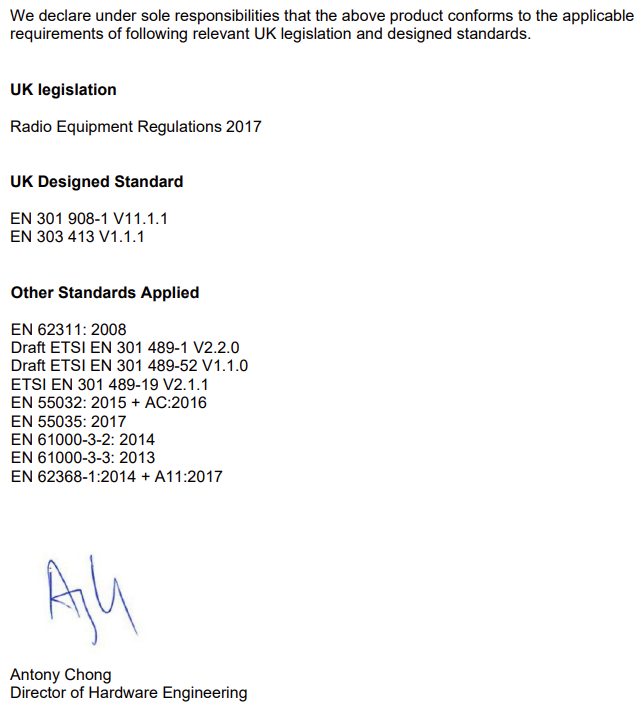

UK Statement for Pepwave Routers ( FlexModule Plus for EM7565 )
